Modern energy manufacturing demands extreme precision and efficiency. Installing a high-performance industrial winding machine optimizes production output significantly. Consequently, battery producers achieve full lead-free compliance and exact alignment. Furthermore, automated winding systems eliminate traditional manual assembly errors. Therefore, leading factories maintain high quality while boosting total productivity.
High-Cost Pain Point Scenarios in Battery Cell Manufacturing
Irregular Tension Control and Separator Wrinkling
Inconsistent web tension during winding causes severe layer wrinkling. In addition, loose separator sheets create dangerous internal short circuits. As a result, defective battery cells fail strict safety checks.
Misalignment in Automatic Electrode Winding System Operations
Manual or semi-automated feeding often causes axial layer drift. Furthermore, misaligned anode and cathode edges reduce active cell area. Consequently, overall battery energy density drops significantly during operation.
Low Throughput with Outdated Battery Cell Winder Machine Units
Traditional machinery operates at slow mechanical feeding speeds. In addition, manual material reloading stalls automated assembly lines. Therefore, outdated winding setups limit daily output in growing factories.
Advanced Technical Solutions for Prismatic Cell Winding
Automated High-Speed Multi-Layer Feeding

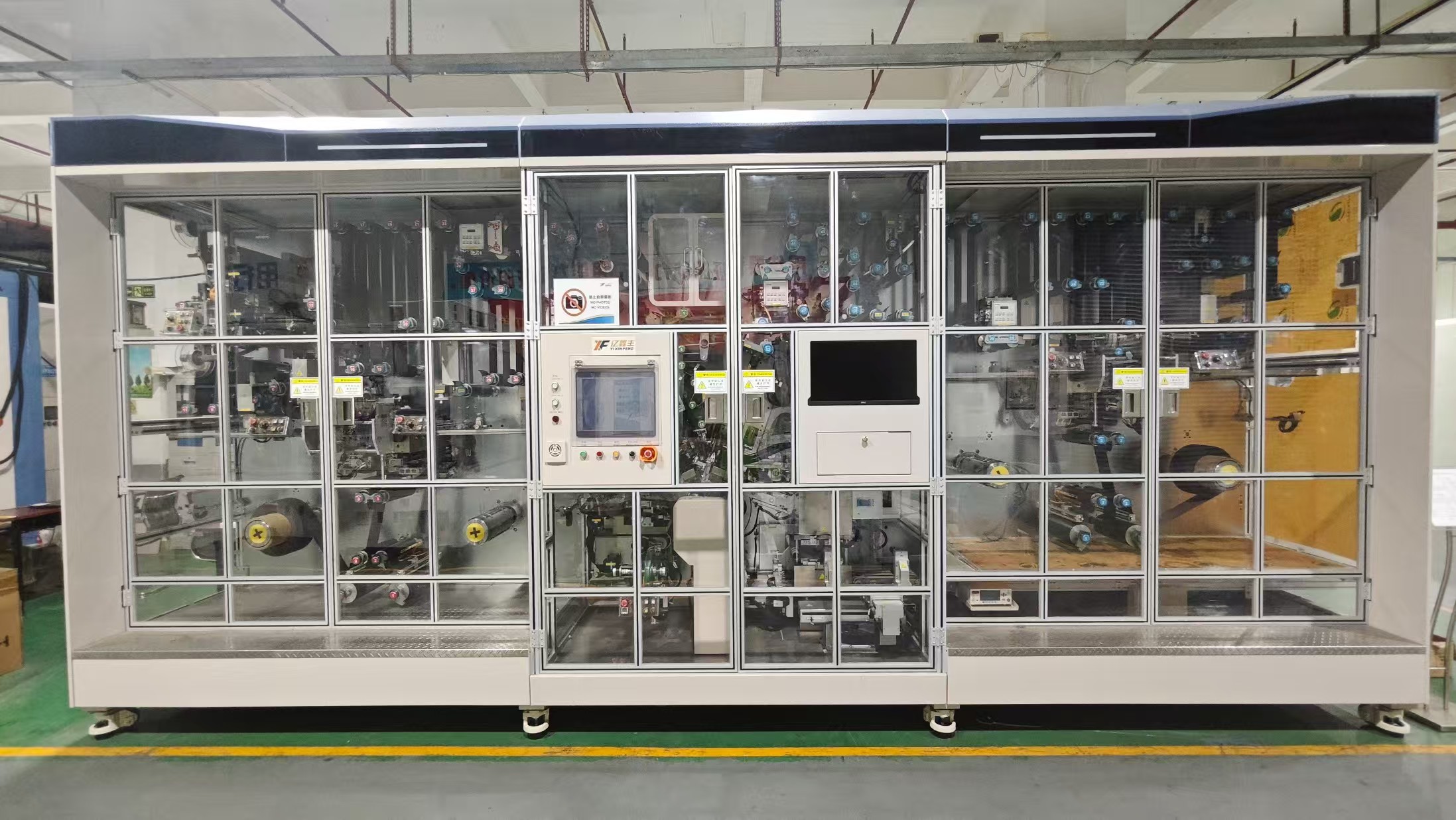

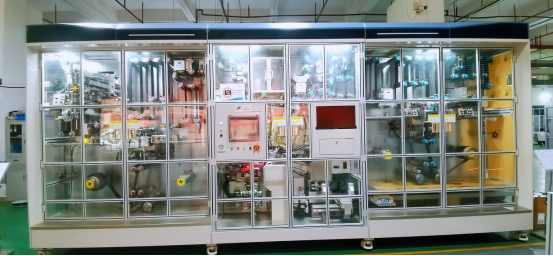

Our advanced prismatic battery cell electrode sheets winding machine automates feeding from rolls. Specifically, it feeds anode sheets, cathode sheets, and separators automatically. Thus, the system winds all three layers in one precise direction.
Precision Prismatic Pressing and Forming
After winding, the system presses the cylindrical structure into a prismatic cell. Furthermore, high-precision rollers maintain uniform pressure across all surfaces. Consequently, the machine produces perfectly shaped prismatic power battery cells. You can review detailed engineering parameters in our Read Our Complete Winding Technology Guide.
Customization for Power Battery Manufacturing
We customize this industrial winding machine specifically for high-capacity power batteries. Moreover, advanced sensors monitor real-time tension across every material layer. Therefore, high-volume production lines operate continuously with maximum stability. Discover more automated battery machinery at Browse Full Automatic Battery Machinery.
Technical Specifications and Performance Comparison
The table below highlights performance metrics between traditional winders and our automated system:
Feature / Parameter Traditional Manual Winder High-Speed Prismatic Winding Machine Feeding Mechanism Manual / Semi-Automatic 100% Fully Automated Roll Feeding Winding Direction Variable / Unstable Unified Same-Direction Synchronous Winding Cell Pressing Unit Separate Manual Press Integrated Automated Prismatic Forming Tension Control Precision ±5% Variance ±0.5% Real-Time Closed-Loop Control Production Efficiency 12 – 18 ppm 45 – 60 ppm (High-Speed Continuous) Compliance Certification Standard Industrial Lead-free Compliance & CE / ISO9001 FAQ
What materials can this industrial winding machine process?
The machine processes anode sheets, cathode sheets, and separator films simultaneously.
How does the machine form prismatic cells from cylindrical windings?
An integrated high-precision pressing mechanism flattens the wound roll into a prismatic shape.
Why is same-direction winding essential for power battery cells?
Same-direction winding ensures uniform tension, prevents electrode damage, and avoids internal short circuits.
How does automated roll feeding improve production speed?
Automated feeding maintains continuous material supply. Consequently, it eliminates reloading downtime and boosts overall output.
