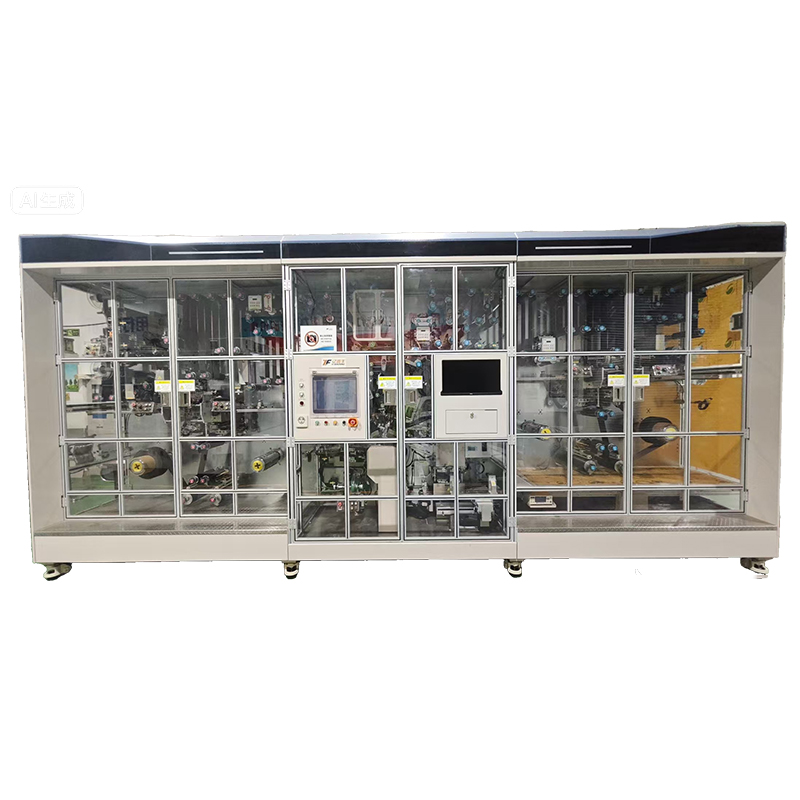

This high-speed prismatic battery cell electrode sheets winding machine is designed for efficient and precise battery manufacturing. The system automatically feeds electrode sheets and separators from rolls, then winds the three materials—anode sheet, cathode sheet, and separator—together in the same direction.
After the winding process, the cylindrical structure is pressed and formed into a prismatic battery cell. The machine is specifically customized for power battery production, offering stable operation, high precision, and high efficiency.
Real-time tension monitoring with tension fluctuation ≤ ±5% to ensure stable winding quality.
EPC correction and snake correction work together to maintain alignment accuracy within ±0.3 mm.
Equipped with POS energy-following algorithm to minimize pole piece jitter during high-speed operation.
Variable angular speed with constant linear speed control.
Maximum design linear speed up to 3 m/s.
