The Paradigm Shift: Why High-Speed Lamination Replaces Legacy Winding Tech
Building a profitable gigafactory requires uncompromised throughput and zero-defect precision. In fact, traditional spiral-winding machinery frequently causes internal stress concentrations at the bent corners of pouch and prismatic cells.
These tight corner bends trigger micro-cracks in active chemical coatings, increasing internal resistance over time. Consequently, leading EV battery manufacturers are shifting toward active layer lamination.
The European Union recently launched its €1.5 billion Battery Booster Facility to scale competitive clean-tech manufacturing. Unlocking this level of industrial growth requires state-of-the-art cell assembly hardware.
Integrating an automatic battery stacking machine resolves corner-stress failures entirely. These advanced systems stack flat anode, cathode, and separator layers in precise alternating sequences.
Choosing modern high speed battery stacking equipment helps plants achieve higher energy density while eliminating structural cell defects. Let us explore the engineering mechanisms driving this industrial transformation.
Overcoming Edge Defects and Micro-Short Risks in Cell Assembly
Eliminating Foil Misalignment with Vision-Guided Servo Motion
A microscopic misalignment between positive and negative electrode plates can cause devastating internal short circuits. Manual assembly or basic mechanical stops simply cannot deliver the micro-meter accuracy needed for EV energy storage.
Modern automated stacking platforms utilize ultra-fast CCD machine vision cameras paired with multi-axis servo drives. The vision sensors calculate edge positions in real time, adjusting robotic grippers before placing each sheet.
This active alignment process keeps layer tolerances strictly within ±0.1mm at high speeds. Protecting the separator margins reduces self-discharge rates and prevents hazardous thermal runaway.
Controlling Separator Tension to Prevent Wrinkling and Delamination
Unwinding thin polymer separators requires delicate, continuous tension control throughout the stack build. Excessive tension stretches the plastic membrane, while loose tension creates wavy wrinkles that trap dangerous air bubbles.
Smart stacking machines feature closed-loop servo tension controllers that adjust dynamically during rapid indexing movements. Maintaining flat separator contact maximizes ion transfer paths across the entire active surface.
Practical Case Study: Boosting Yield and Output at a Tier-1 Pouch Cell Gigafactory
The Operational Challenge: High Scrap Rates in Manual Pouch Assembly
A major European battery manufacturer struggled with high defect rates on its 60Ah EV pouch cell production line. Manual handling and legacy semi-automatic stackers caused separator wrinkling and corner burr misalignment.
Consequently, cell scrap rates exceeded 4.5%, costing the plant millions in wasted lithium and cobalt materials annually. The management team decided to fully automate their lithium battery cell assembly stage.

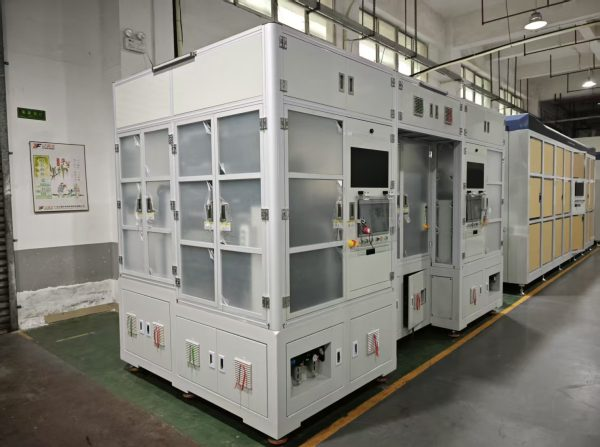

The Technical Solution: Deploying 4-Workstation Automatic Stacking Machines
The plant replaced its manual workstations with multi-station high-speed automatic stacking units. The new equipment incorporated CCD vision alignment, robotic sheet picking, and continuous z-fold separator unwinding.
In addition, integrated ionizing blowers neutralized static electricity, preventing ambient dust particles from clinging to coated foils.
The Measured Commercial Results: Dramatic Yield and Speed Gains
Deploying the new automated stacking infrastructure yielded immediate improvements within three months of operation.
Scrap Rate Dropped Below 0.3%: Vision-guided positioning eliminated manual alignment errors.
Stacking Speed Reached 0.1s/Piece: Multi-station robotic heads increased throughput by 300%.
Payback Period Achieved in 11 Months: Reduced raw material waste covered the initial equipment investment.
This real-world case demonstrates how automated lamination drives profitability in high-volume cell manufacturing.
Performance Comparison of Cell Formation Technologies
Selecting the correct cell forming architecture directly impacts factory floor space, energy consumption, and product quality. Review this technical matrix to evaluate equipment choices for your facility.
| Stacking Machine Performance Metric | Manual / Semi-Auto Stacking | Spiral Winding Systems | High-Precision Automatic Stacking |
| Layer Alignment Accuracy | ±0.5 mm to ±1.0 mm | ±0.3 mm (Corner Distortion) | ±0.05 mm to ±0.1 mm |
| Single-Sheet Stacking Speed | 1.0s to 2.0s per piece | Continuous (Higher Stress) | 0.1s to 0.2s per piece |
| Internal Mechanical Stress | Uncontrolled | High at Bending Radii | Near Zero (Flat Layers) |
| Cell Space Utilization | Poor (Inconsistent Thickness) | Moderate (Gaps at Corners) | Maximum (Volumetric Efficiency) |
| Dust & Static Suppression | None | Basic Passive Strips | Integrated Active Ionizing Fans |
Scaling Production for Pouch and Prismatic Formats

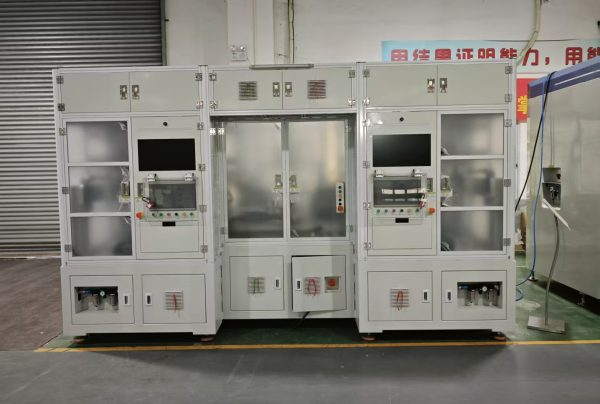

Adapting Multi-Station Units for a Pouch Cell Stacking Machine
Pouch cells require precise cut-sheet placement where alternating cathode and anode plates drop onto a continuous, z-folded separator web. Achieving high speed requires splitting tasks across parallel robotic stations.
Operating a multi-station pouch cell stacking machine allows simultaneous picking, vision scanning, and layer dropping. This parallel processing layout cuts cycle times down to fraction-of-a-second intervals without sacrificing positioning accuracy.
Implementing Flexible Tooling for Prismatic Cell Stacking Technology
Prismatic cell formats dominate the energy storage and electric bus sectors due to their rigid, protective aluminum casings. Stacking dense electrode blocks for prismatic cells requires heavy-duty compaction mechanics.
Modern prismatic cell stacking technology features quick-change tool heads that accommodate various cell height profiles. Plant engineers switch production between different battery models in under thirty minutes, maximizing overall equipment effectiveness.
Drive Gigafactory Efficiency with Automated Stacking
To sum up, installing an automatic battery stacking machine is the most effective way to achieve gigafactory scale. Moving away from manual lamination and legacy winding methods eliminates internal structural stress and micro-short hazards.
Deploying high speed battery stacking equipment equips your plant with vision-guided accuracy and continuous quality monitoring. Invest in advanced automated stacking machinery today to cut material scrap, elevate cell performance, and lead the global battery transition.
